Eight-Axis Gantry Intelligent Welding Workstation

Eight-Axis Gantry Intelligent Welding Workstation

Equipment Features:

The eight-axis gantry intelligent welding workstation enhances adaptability in the work piece 's length/width directions.

It includes an automatic oil supply system to ensure proper track lubrication.

Utilizes enclosed tank chains to prevent control line damage from heat.

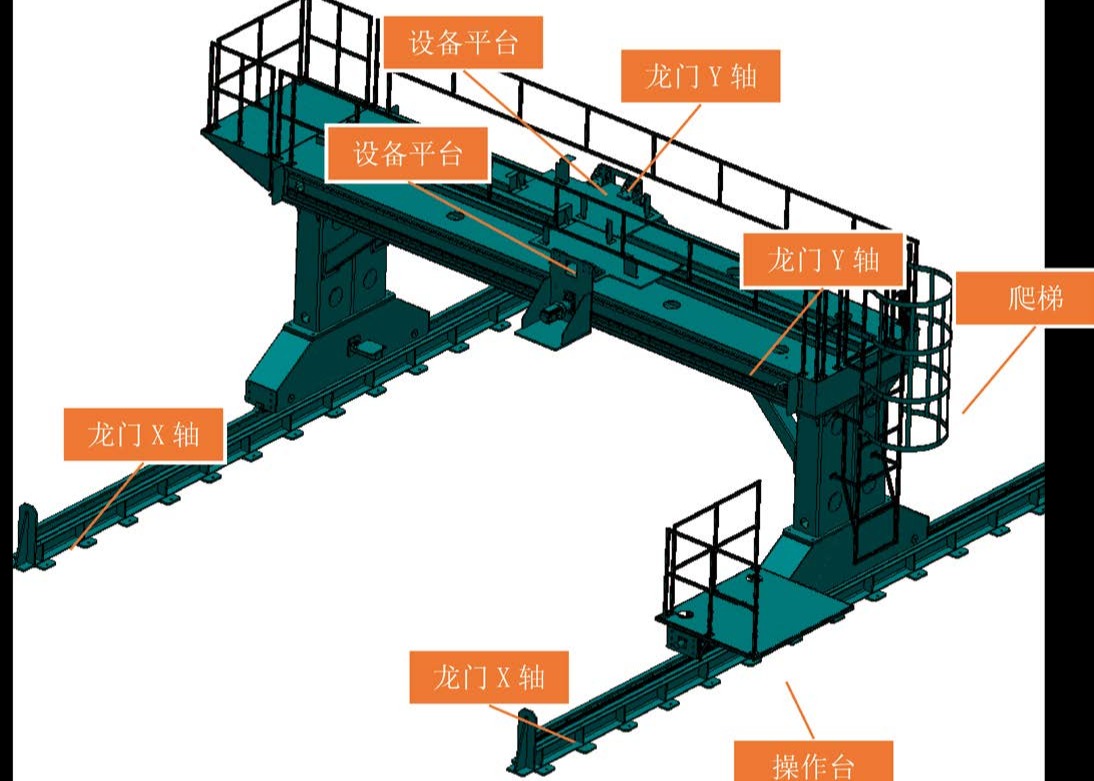

Standard eight axis gantry layout dimensions diagam

Workstation components

Equipment Layout:

The standard dual eight-axis gantry intelligent workstation includes:

Eight-axis gantry systems:2sets

Robots: 4 sets

Welding machines:4sets

Welding torch vision systems:4sets

Operating systems(including computers, etc.):2sets

Torch cleaning station

Superior cleaning performance compared to traditional reamer-type cleaners. The jet-type cleaner thoroughly removes spatter from the nozzle inner wall, contact tip seat, and diffuse router surface, forming a high-quality gas shield equivalent to new nozzles, ensuring excellent welding results.

Capable of cleaning various special-shaped torches.

Particularly effective for cleaning sticky spatter from aluminum welding,

Wire cutting mechanism operates stably with long service life.

Oil spray mechanism features uniform atomization and stable operation with adjustable oil spray volume.

Built-in abrasive screening device enables abrasive recycling.

Simple and convenient installation, debugging, and operation.

Eight-Axis Gantry Intelligent Welding Workstation Images
