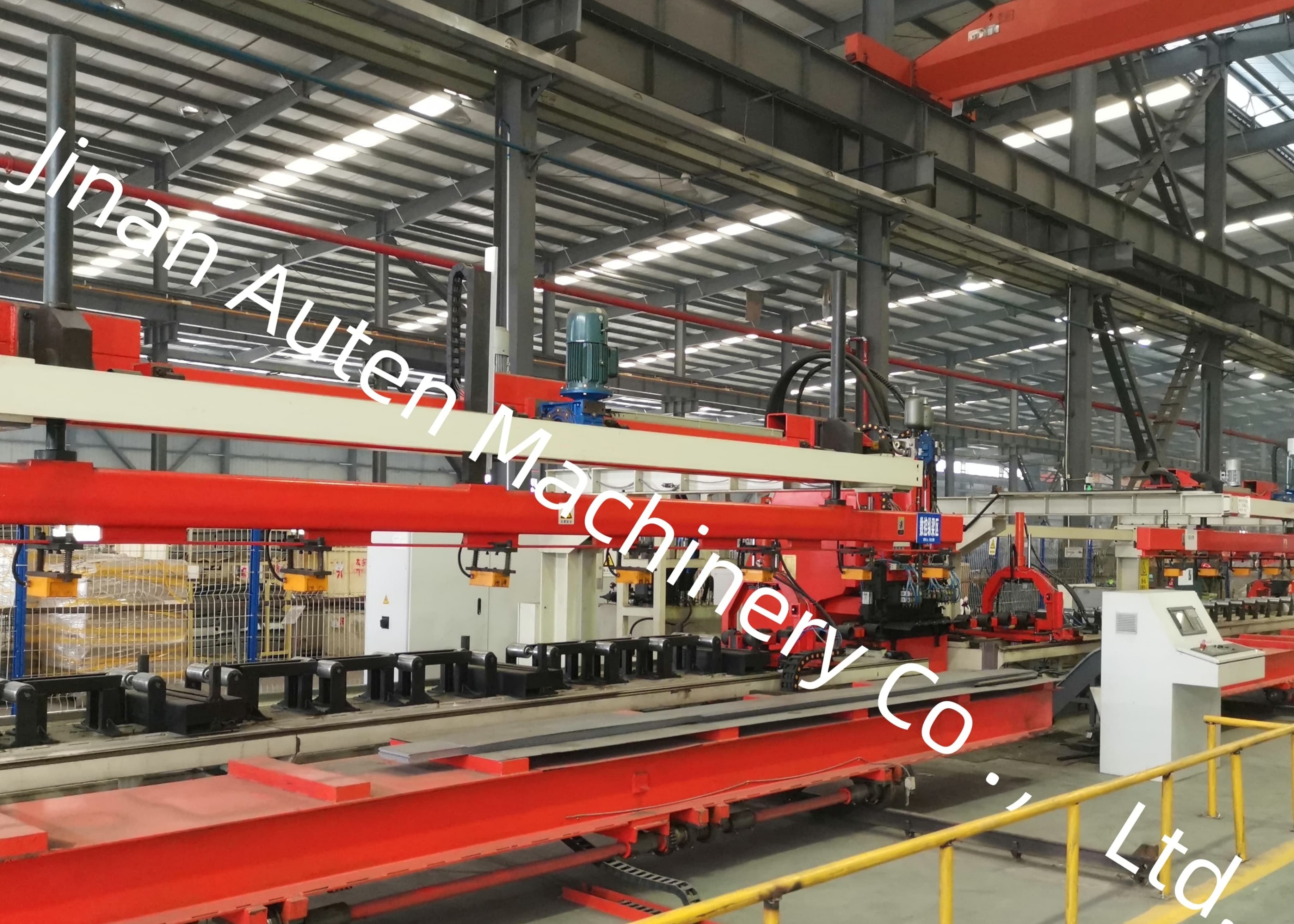

Beam Profiles Use CNC Sheet Metal Processing Line For Modern Automotive Chassis Manufacturing
Product Introduction:
Our company has developed an advanced, high-efficiency CNC sheet metal processing line specifically designed for precision punching of high-strength automotive longitudinal beams. Engineered to handle extra-wide and heavy-gauge beam profiles used in heavy-duty trucks, mining vehicles, construction machinery, and other specialized commercial vehicles, this system combines superior machining accuracy, high production throughput, and dependable operational stability, making it an excellent solution for modern automotive chassis manufacturing.
Main technical parameters:
| No. |
Name |
Value |
| 1 |
Nominal force |
1200KN |
| 2 |
Processing plate size and range |
| 3 |
Length |
4000～8000mm |
| Width |
200～550mm |
| Thickness |
3～6mm |
| Incoming sheet material sickle bending |
≤7mm/10m |
| X-axis sheet unevenness |
≤10mm/1000mm ,≤20mm/8000mm |
| Y-axis sheet unevenness |
5mm |
| Sheet warping |
≤50mm |
| Sheet material mechanical properties |
σb=510～850N/mm2 |
| 4 |
Max. Punching diameter |
φ60mm |
| 5 |
Number of modules |
25 |
| 6 |
Max. speed |
| X-axis |
Max=50m/min |
| Y-axis |
Max=30m/min |
| 7 |
Processing accuracy |
| X-axis |
±0.25/600mm ,±0.50 / 3000mm,±0.7 / 8000 mm |
| Y-axis |
±0.2 mm / 600 mm |
| 8 |
Processing method |
Filtration |
| 9 |
Reference |
The X-axis is along the length of the plate, and the X-coordinate of the hole is based on the end of the plate; the Y-axis is the width of the plate, and the reference is the center line.
|
| 11 |
Operating mode |
Manual, automatic |
Product Features
1. The production line is equipped with an advanced 828D CNC control system integrated with a high-performance servo-driven feeding mechanism. This coordinated system supports high-speed processing while maintaining precise dimensional accuracy, excellent positioning repeatability, and consistent machining quality throughout the production cycle.
2. A servo-driven automatic centering mechanism is incorporated into the material support roller assembly, allowing the machine to process longitudinal beams with different cross-sectional configurations. The system automatically compensates for height variations ranging from 0 to 200 mm, ensuring precise workpiece alignment and stable material feeding during machining operations.
3. The machine can accommodate up to 25 punching dies with different diameters. Its optimized tooling configuration enables convenient die installation and rapid tool changes, reducing setup time while improving production flexibility and operational efficiency.
4. The complete production process, including workpiece loading, punching, and finished-component unloading, is performed automatically. This integrated workflow minimizes manual handling, reduces labor requirements, and substantially increases overall manufacturing productivity.
5. Punching waste is automatically collected and removed by an integrated scrap-handling system. This arrangement keeps the working area clean, prevents waste accumulation, and supports continuous production with minimal interruption.
6. The intelligent programming software allows direct import of AutoCAD drawings and DXF files generated by commonly used CAD systems. With an intuitive human–machine interface (HMI), the software automatically converts engineering design data into executable machining programs, simplifying programming procedures, shortening setup time, and reducing the possibility of programming errors.
The product display features a representative selection of finished longitudinal beam samples produced by this automated processing line, covering various specifications commonly used in mining trucks, heavy-duty commercial vehicles, construction machinery, and specialized transport equipment. These sample components demonstrate the machine's precise hole positioning, high punching quality, and consistent dimensional accuracy. They enable customers, engineers, and quality inspection personnel to evaluate the equipment's machining capabilities, manufacturing precision, and operational reliability through direct examination of actual workpieces.
This advanced CNC Longitudinal Beam Punching Machine is specifically developed for the precision punching of flat longitudinal beams used in automotive manufacturing. It is widely utilized in the fabrication of chassis longitudinal beams for heavy-duty trucks, mining vehicles, construction machinery, and other specialized commercial vehicles. By producing accurately positioned hole patterns that comply with demanding structural assembly and engineering specifications, the machine provides a reliable manufacturing solution for critical load-bearing components. Its high machining accuracy, dependable operating performance, and automated production capabilities contribute to increased manufacturing efficiency, improved structural integrity, and consistently high finished-product quality.
|
|
